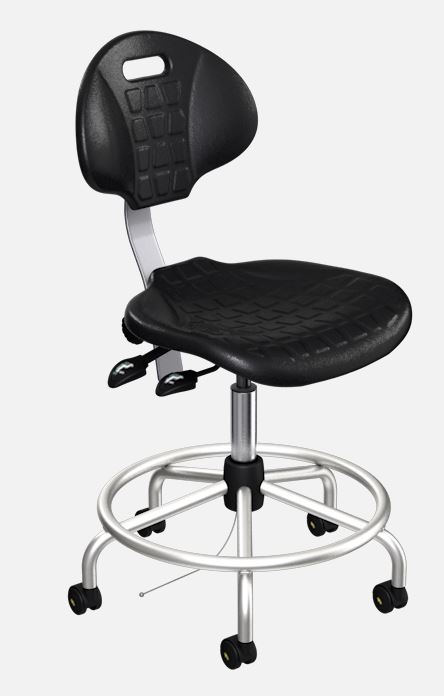

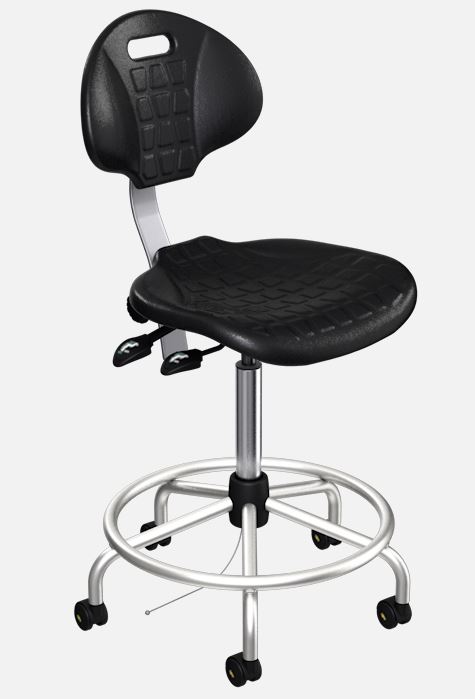

Biofit ESD UUS Series Chairs

Standard Features:

Seat: Black, self-skinned urethane seat with waterfall front, shaped rear edge and 0.09375″ ventilating ribs; measures 18.5″ wide x 17″ deep x 1.5″ thick.

Performance Package: All chair components treated to assure grounding through the chair to ESD flooring or mat. This includes the use of conductive casters or glides, metal bases, ground control lead to assure thorough static drain if casters become insulated by dirt or dust, ESD upholstery materials, and metal-to-metal contact throughout the chair for all metal parts.

Backrest: Black, self-skinned urethane backrest with integral lumbar support and 0.09375″ ventilating ribs; measures 16.5″ wide x 12.5″ high.

Base: Small, five-legged tubular base with caster-to-caster diameter of 23.0″ and maximum width of 22.8″. Welded 1″ x 14-gauge steel tubular legs ensure uncompromised strength, withstanding test loads of 2x BIFMA strength requirements.
Casters/Glides: Two inches in height, with dual soft-wheels. Casters resist movement when the seat is unoccupied or 2.25″ high black glides have a base diameter of 2.125″ and are made of first class polyamide with a steel grip ring stem.

Controls: Control allows function of the seat height activation and backrest adjustments by means of easily engaged levers which can be activated from the seated position. Seat tilt is fixed at 3-1/2° rearward while the backrest adjusts 8° forward and 13° rearward.

Footring: 21” diameter non-adjustable 1” x 18-gauge tubular steel ring welded to top of legs, 8” above floor surface.

Fire Retardant: meets California Technical Bulletin 117; treatment to meet CAL 133 is optionally available.

BioFit seating products are warranted against mechanical or structural failure due to defective material, workmanship, or abnormal wear for 13 years of normal use. Pneumatic cylinders are covered for the functional lifetime of the chair or stool.

Calculate Your Proper Seat Height
A basic formula to determine the correct seat height is the real work level ( measuring floor to the height of the task) minus 12″. We recommend that this be the midpoint of the seat-height adjustment range of the chair you select.
Example: 38″(Work level from floor to task height) – 12″ = 26″ (Midpoint of seat-height adjustment range)
