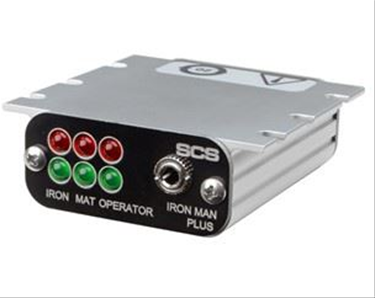

Iron Man Plus Monitor

SCS (formerly 3M) Item#: CTC331-WW Iron Man Plus Monitor
Single Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of an operator and conductive or dissipative worksurface and meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
Electrical Overstress (EOS) Detection
Alarms if overvoltage (±5V or less) from a tool such as a soldering iron or electric screwdriver is applied to a circuit board under assembly
Operator Body Voltage Detection
Alarms if the operator generates or comes in contact with a voltage that would be dangerous to an ESD susceptible item
Digital Signal Processing Technology
Applies a low test voltage to the operator (0.40V) for the handling of sensitive components
Miniature Size (0.85” H x 2.4” W x 2.6” L)
Uses minimal workspace and includes mounting tabs for installation underneath table tops
Use with Dual-Wire Wrist Straps
See SCS
Dual-Wire Wrist Straps
Replaceable Dual-Wire Operator Jack
Use the
CTA251
Replacement Jack PCB to easily replace the operator jack without the use of solder
Calibration Unit Available for Accurate Performance and Conformity Testing in the Field
See SCS item
CTE701
NIST Calibrated with Certificate Included
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see
Calibration
.
100-240VAC Power Adapter with Interchangeable Plugs
Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe
